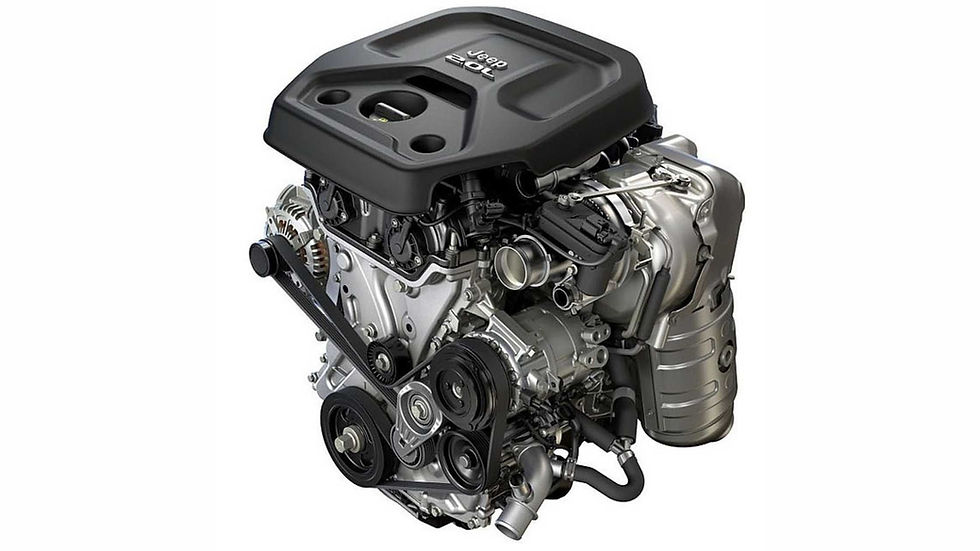

Chryslers 2.0L GME T4 Hurricane turbo is a direct-injection turbocharged gasoline inline four-cylinder engine producing 270 hp and 400 nm torque.
This engine is part of the Global Medium Engine (GME) engine family developed by the Fiat Chrysler Automobiles (FCA) group’s powertrain subsidiary.
The American version, produced by FCA US, debuted with the Jeep Wrangler in 2018 and was followed a year later by the Jeep Cherokee.
In this article, we’ll cover the design and specs of the Chrysler 2.0L Turbo GME Hurricane engine, as well as its reliability and issues.
Design of the Chrysler 2.0L Turbo GME Hurricane Engine
This engine has a low-pressure sand-cast aluminium cylinder block with cast-iron liners. In contrast to the closed deck engines seen in Alfa Romeo cars, the engine block features an open deck design.
The lightweight 2.0L GME engine’s crankshaft is offset from the cylinder bores.
The crankshaft offset reduces cylinder wall side loading by making the connecting rod more vertical during the power stroke.
The engine block also has a low-friction roller bearing balance shaft and a variable displacement two-stage oil pump.
When the engine is under severe load, a two-stage oil pump runs in high-pressure mode, and in low-pressure mode during normal operation.
It also delivers oil to the piston cooling jets (piston oil squirters) in each cylinder bore, which control piston temperatures and reduce spark knock.
The pistons are made of cast aluminium with four valve chambers and plasma-coated piston rings.
On top of the block is a cast aluminium alloy cylinder head.
The 2.0 Hurricane head comes with:
- four valves per cylinder
- sodium-filled exhaust valves
- a central injector
- a MultiAir valvetrain with dual overhead camshafts (DOHC)
- high tumble intake ports
- a water-cooled, integrated exhaust manifold
The intake and exhaust camshafts, which are both equipped with a dual Variable Valve Timing (VVT) system, are driven by a low-friction timing chain (an inverted tooth chain).
The engine uses hollow shafts with polished cam journals to conserve weight (3.5 lbs) and boost lifespan.
The 2.0L GME T4 engine employs direct injection technology. The high-pressure fuel pump provides up to 2,900 psi for the high-pressure common-rail injection system.
This method uses multi-hole fuel nozzles to pump gasoline into the cylinders, providing for better fuel atomization and delivery accuracy than port injection.
The next step is a turbocharged intake, which enhances both performance and efficiency.
There’s a twin-scroll turbocharger with a low-inertia design and an electronically regulated wastegate. It is connected to the cylinder head since the exhaust manifold is incorporated into it.
The integrated and water-cooled exhaust manifold reduces exhaust temperatures, prolonging the turbocharger’s life and accelerating engine warm-up time.
The intake is equipped with a water/air charge intake air cooler. The intake air cooler, throttle body, and turbocharger are all served by a separate cooling circuit.
The cooling system additionally includes a variable flow water pump and an electric auxiliary water pump.
Water also cools the EGR (exhaust gas recirculation) system.
In select 2.0L GME turbo fours, a belt-starter-generator (BSG) is employed to assist the engine at lower rpm.
This eTorque technology also improves auto stop/start performance and increases low-end throttle response before the turbo spools up.
The engine fulfils all current emission laws thanks to the GPEC4 engine-management system, which incorporates a close-coupled catalyst, wide-range O2 sensor, and C-EGR system.
Due to the combination of a high compression ratio (10:1) and turbocharging, the turbo hurricane requires a minimum unleaded regular 87 octane for excellent fuel efficiency and performance.
91 octane or above is recommended for maximum fuel economy and performance.
The 2.0 turbo Hurricane is a great alternative to the 2.4-liter Chrysler engine and the 3.6-liter Pentastar V6 engine.
Chrysler 2.0L Turbo GME Hurricane Specs
- Manufacturer: FCA US LLC, Trenton South Engine Plant, Trenton, Michigan
- Production years: 2016-present
- Cylinder block material: Aluminium
- Cylinder head material: Aluminium
- Fuel type: Gasoline
- Fuel system: Direct injection
- Configuration: Inline
- Number of cylinders: 4
- Valves per cylinder: 4
- Valvetrain layout: DOHC
- Bore: 84.0 mm (3.31 in)
- Stroke: 90.0 mm (3.54 in)
- Displacement: 1,995 cc (121.7 cu in)
- Type: Four-stroke, turbocharged
- Compression Ratio: 10.0:1
- Power: 270 hp (201 kW) at 5,250 rpm
- Torque: 295 lb-ft (400 Nm)at 3,000 rpm
- Firing order: 1-3-4-2
- Engine oil weight: SAE 5W-30
- Engine oil capacity: 4.7 litres (5.0 qt)
- Oil change interval: 9,000 miles (15,000 km) / 12 months
- Applications: Jeep Wrangler (JL), Jeep Cherokee (KL), Jeep Grand Commander
Problems & Reliability of the 2.0L Turbo GME Hurricane
Because the engine is new to the market, it’s impossible to say how dependable it will be over time.
According to most owners, the engine light on a new car comes on after a few hundred/thousand miles.
This might be due to a number of factors. It might be a broken sensor, loose hoses, or loose connections, all of which point to poor manufacturing construction and subsequent quality control.
This is because the engine is new and intricate, with many components, and it takes time to test and deal with any issues that may develop.
Tuning the Chrysler 2.0L Turbo GME Hurricane Engine
There are several aftermarket and performance choices for your Hurricane 2.0 engine, even though it is doubtful that this engine can provide impressive performance without a lot of work and a little bit of risk.
- Performance intakes
- ECU programming
- Exhaust systems
1. Performance Intakes
The performance intakes from aFe and Mishimoto are a good start to improving power and reducing restriction in the intake tract.
Higher power engines and remaps usually require or go well with a performance intake.
2. ECU Programming
aFe, Superchips, RaceChip, and DiabloSport have tuners that can improve the power of the engine.
3. Exhausts
Borla, aFe, Gibson, and Magnaflow provide exhaust systems.
An upgraded exhaust system not only improves sound, but can also improve power by reducing restriction within the exhaust system.
This can be done by using an exhaust with a larger diameter, and removing restrictive parts such as the following.
- catalytic converter (de-cat exhaust)
- mufflers / resonators (back-box / muffler delete)
- particulate filters (DPF / GPF)
- reducing bends in the pipework
Pick your performance components judiciously, yet these four cylinders still managed to post some outstanding results.
It outperformed larger-displacement six and eight-cylinder automobiles and showed better horsepower per litre.
